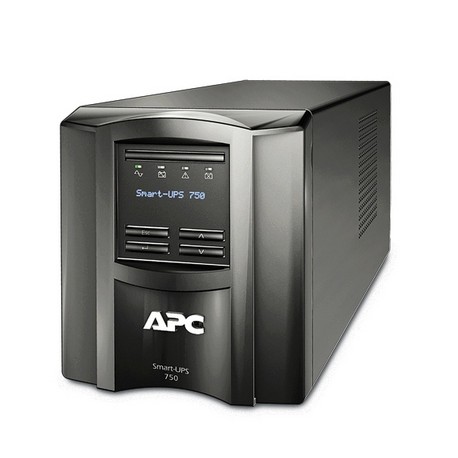

This is a refurbished Uninterruptible Power Supply/Battery Backup unit. It has been installed with brand new, high quality batteries, and has been thoroughly tested and then professionally packed in a brand new box. All products sold by BatteryUPSforLESS are fully covered for all parts and labor by our famous One-Year "No-Hassle" warranty and our innovative 30-Day "Lemon" warranty.

Output

• Output Power Capacity 500 Watts / 750 VA
• Output Voltage 120V
• Waveform Type Sine wave
• Output Connections (6) NEMA 5-15R (Standard 3-prong receptacles)

Input

• Input Voltage 120V
• Input Connections NEMA 5-15P (Standard 3-prong plug)
• Input voltage range for main operations 82 - 144V

Batteries & Runtime

• Typical recharge time 3 hour(s)
• Replacement Battery UBC48
• Runtime
  • Runtime at full load (500 Watts) 4.7 minutes
  • Runtime at three-quarter load (375 Watts) 8.4 minutes
  • Runtime at half load (250 Watts) 15.8 minutes
  • Runtime at quarter load (125 Watts) 37.8 minutes
  • Runtime at minimum load (100 Watts) load 50.2 minutes

Communications & Management

• Interface Port(s) DB-9 RS-232,SmartSlot,USB
• Control panel Multi-function LCD status and control console

Surge Protection and Filtering

• Surge energy rating 540 Joules
• Filtering Full time multi-pole noise filtering, zero clamping response time, meets UL 1449

Physical

• Height 6.34 inches (161 mm)
• Width 5.43 inches (138 mm)
• Depth 14.29 inches (363 mm)
• Net Weight 29.00 lbs. (13.18 kg)
• Operating Environment 32 - 104 F (0 - 40 C)
• Audible noise at 1 meter from surface of unit 55.00 dBA
• Online Thermal Dissipation 90.00 BTU/hr

Conformance

• Regulatory Approvals UL 1778
• Environmental Compliance RoHS 7b Exemption,REACH: Contains No SVHCs
