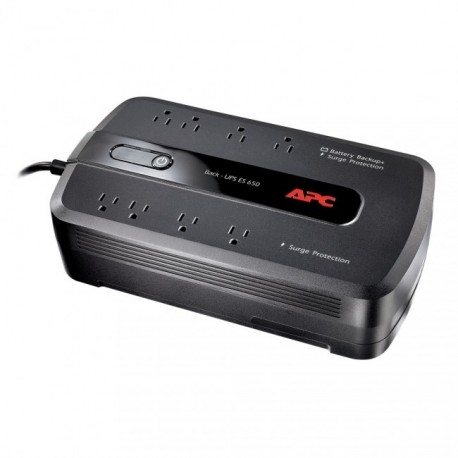

APC BACK-UPS 650VA 390W 120V BE650G-CA

BE650G-CA

Refurbished with new batteries

APC BACK-UPS 650VA 390W 120V BE650G-CA

More details

CAD$92.39

Add to wishlist

Data sheet

Output watt capacity (watts)390
Output volt amp capacity (VA)650
Output Voltage (Volt)120V
Nominal Input Voltage (Volt)120V
Input Connector TypeNEMA 5-15P
Output ConnectionsNEMA 5-15R
Waveform TypeSine wave
Replacements Battery KitUBC17

More info

Manufacturer: APC
Model:
 APC Back-UPS 650VA 120V, New Batteries, Refurbished UPS
Condition:
 New batteries, refurbished UPS
Part Number:
 BE650G

Maximum output: 390W / 650VA
Typical backup time at half load:
 15.4 minutes (195 Watts)
Typical backup time at full load:
4.2 minutes (390 Watts)
Warranty:
 1 year full replacement warranty

BE650G - APC Back-UPS 650VA Specifications:

Output:

Output power capacity

390W / 650VA

Max Configurable Power (Watts)

390W / 650VA

Nominal Output Voltage

120V

Output Frequency (sync to mains)

60 Hz

Topology

Standby

Waveform type

Sine wave

Output Connections

(4) NEMA 5-15R (Surge)

(4) NEMA 5-15R (Battery & Surge)


Input:

Nominal Input Voltage

120V

Input frequency

50/60 Hz

Input Connections

NEMA 5-15P

Cord Length

6ft (1.83 meters)

Input voltage range for main operations

88 - 139V

Number of Power Cords

1

Maximum Input Current

12.0A


Batteries and Runtime:

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

16hour(s)

Replacement Battery

UBC17

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

83


Communications and Management:

Interface Port(s)

USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering:

Surge energy rating

375 Joules

Data Line Protection

Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
