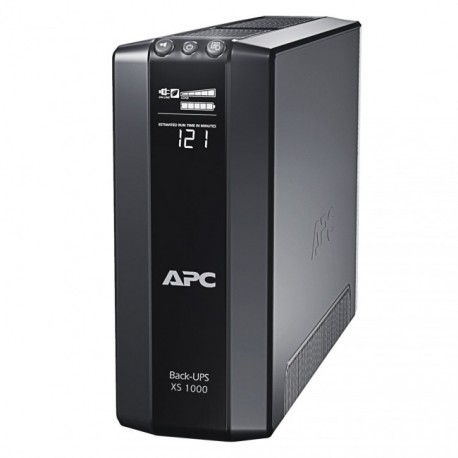

APC BACK-UPS XS 1000VA 600W 120V BX1000G-CA
BX1000G-CA
Refurbished with new batteries
APC BACK-UPS XS 1000VA 600W 120V BX1000G-CA
| Model: BX1000G | |
| Input: NEMA 5-15P (120V - 15A) | |
| Output: (4) NEMA 5-15R (Surge), (4) NEMA 5-15R (Battery & Surge) | |
| Line Interactive UPS - Stepped Sinewave Output |
Data sheet
| Output watt capacity (watts) | 600 |
| Output volt amp capacity (VA) | 1000 |
| Output Voltage (Volt) | 120V |
| Nominal Input Voltage (Volt) | 120V |
| Input Connector Type | NEMA 5-15P |
| Waveform Type | Stepped approximation to a sine wave |
| Replacements Battery Kit | UBC123 |
More info
BX1000G - APC Back-UPS XS 1000VA Specifications:
Output:
Output power capacity | 600W / 1.0kVA | ||
Max Configurable Power (Watts) | 600W / 1.0kVA | ||
Nominal Output Voltage | 120V | ||
Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz | ||
Load Crest Factor | 3 : 1 | ||
Topology | Line Interactive | ||
Waveform type | Stepped approximation to a sinewave | ||
Maximum Output Current | 15 | ||
Output Connections |
| ||
Transfer Time | 8ms typical : 12ms maximum |
Input:
Nominal Input Voltage | 120V | |
Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) | |
Input Connections |
| |
Cord Length | 6ft (1.83meters) | |
Input voltage range for main operations | 88 - 139V | |
Number of Power Cords | 1 | |
Maximum Input Current | 12.0A |
Batteries and Runtime:
Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 16hour(s) |
Replacement Battery | APCRBC123 |
Expected Battery Life (years) | 3 - 5 |
RBC Quantity | 1 |
Battery Volt-Amp-Hour Capacity | 173 |
Communications and Management:
Interface Port(s) | USB |
Control panel | Multi-function LCD status and control console |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
Surge energy rating | 354 Joules |
Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector) |
Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
