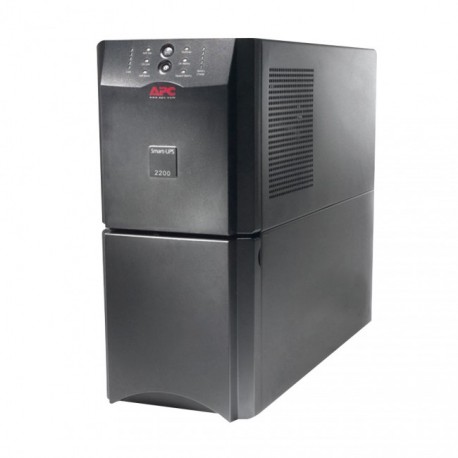

APC DELL SMART-UPS 2200VA 1980W USB & SERIAL 120V DLA2200-CA
DLA2200-CA
Refurbished with new batteries
APC DELL SMART-UPS 2200VA 1980W USB & SERIAL 120V DLA2200-CA
Data sheet
| Output watt capacity (watts) | 1980 |
| Output volt amp capacity (VA) | 2200 |
| Output Voltage (Volt) | 120V |
| Nominal Input Voltage (Volt) | 120V |
| Input Connector Type | NEMA 5-20P |
| Waveform Type | Sine wave |
| Replacements Battery Kit | UBC55 |
More info
Manufacturer: APC
Model: APC Dell Smart-UPS 2200VA 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: DLA2200
Maximum output: 1980W / 2200VA
Typical backup time at half load: 24.1 minutes (990 Watts)
Typical backup time at full load: 6.7 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
DLA2200 - APC Dell Smart-UPS 2200VA Specifications:
Output:
Output power capacity | 1.98kW / 2.2kVA | ||
Max Configurable Power (Watts) | 1.98kW / 2.2kVA | ||
Nominal Output Voltage | 120V | ||
Efficiency at Full Load | 95.0 % | ||
Output Voltage Distortion | Less than 5% at full load | ||
Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal | ||
Load Crest Factor | up to 5 : 1 | ||
Topology | Line Interactive | ||
Waveform type | Sine wave | ||
Output Connections |
| ||
Transfer Time | 2ms typical |
Input:
Nominal Input Voltage | 120V | |
Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) | |
Input Connections |
| |
Cord Length | 6ft (1.83meters) | |
Input voltage range for main operations | 82 - 144V | |
Input voltage adjustable range for mains operation | 75 - 154V | |
Number of Power Cords | 1 | |
Efficiency at Full Load | 95.0 % |
Batteries and Runtime:
Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 3hour(s) |
Replacement Battery | UBC55 |
Expected Battery Life (years) | 3 - 5 |
RBC Quantity | 1 |
Battery Volt-Amp-Hour Capacity | 816 |
Communications and Management:
Interface Port(s) | DB-9 RS-232, SmartSlot, USB |
Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
Surge energy rating | 459 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
